Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: MokO
  • Model Number: MK51113BJ03
  • Number of Layers: 2 layer
  • Base Material: FR4 ,Aluminum,PI
  • Copper Thickness: 1oz
  • Board Thickness: 1.6mm,1.0mm,0.5mm
  • Min. Hole Size: 0.25mm
  • Min. Line Width: 0.1mm
  • Min. Line Spacing: 0.1mm
  • Surface Finishing: HASL,Nickle,Immersion Gold,Immersion Tin
  • Standard: IPC-A-610D
  • Wrap and twist: ≤0.5%
  • V-Score Depth: 20-25% of board thickness
  • Design File Formate: Gerber RS-274,274D,Eagle and AutoCAD's DXF,DWG
  • Solder mask color: Green,Blue,Black,White,Red,Yellow
  • PCB Special technique: Blind&buried via,Impedance control
  • Certificate: UL, ISO 9001, ISO 14001, ROHS
  • Specialised in: LED,medical,industrial boards
  • Service: PCB,Turnkey PCBA,PCB clone,Comp

Packaging & Delivery

Packaging Details Inner packing :Vacuum Package Outer packing:Standard Carton
Delivery Time PCB:5-7 days ;PCBA:15-20 days

  PCB&PCBA, Welcome to MOKO!





OEM Service

 PCB Board Manufacture and PCBA Service:

 ---PCB board made, circuit board parts purchased by us

 ---Electronic testing circuit board or PCBA

 ---Fast delivery, anti-static package

 ---RoHS Directive-compliant, lead-free

 ---Components purchasing, PCB assembly, test, packing and PCB delivery

 ---Eleectronic manufacturing service



Detailed Terms for Pcb Assembly

Technical requirement for pcb&pcb assembly:
---- Professional Surface-mounting and Through-hole soldering Technology

---- Various sizes like 1206,0805,0603 components SMT technology
----ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
----PCB Assembly With UL,CE,FCC,Rohs Approval
----Nitrogen gas reflow soldering technology for SMT.
----High Standard SMT&Solder Assembly Line
---- High density interconnected board placement technology capacity.

Quote requirement for pcb&pcb assembly:
----Gerber file and Bom list
----Clear pics of pcba or pcba sample for us
----Test method for PCBA

Related Products

OEM board for gsm gps circuit board assembly gps tracker sim pcb



PCB Technical Specification



Number of Layer1,2,4 or 6,upto 18 layer
Order Quantity1 to 50,000
Board ShapeRetangular,round,slots,cutouts,complex,irregular
Board TypeRigid, Flexible, Rigid-flexible
Board MaterialFR-4 glass epoxy, FR-4 high Tg, Rohs compliant,Aluminum,Rogers,etc.
Board CuttingShear,V-score,Tab-routed
Board Thickness0.2-4.0mm, Flex 0.01-0.25mm
Copper Weight1.0, 1.5, 2.0 oz
Solder MaskDouble-sided green LPI,Also support Red,White,Yellow,Blue,Black
Silk ScreenDouble-sided or single-sided in white,yellow,black,or negative
Silk Screen Min Line Width0.006'' or 0.15mm
Max Board Dimensions20 inch*20inch or 500mm*500mm
Min Trace/Gap0.10mm, or 4mils
Min Drill Hole Diameter0.01'',0.25mm, or 10mils
Surface FinishHASL,Nickle,Immersion Gold,Immersion Tin,Immersion Silver,OSP,etc.
Board Thickness Tolerance±10%
Copper Weight Tolerance± 0.25 oz
Minimal Slot Width0.12'', 3.0mm, or 120mils
V-Score Depth20-25% of board thickness
Design File FormateGerber RS-274,274D,Eagle and AutoCAD's DXF,DWG



PCBA Capabilities



QuantityPrototype&Low Volume PCB Assembly,from 1 Board to 250,is specialty,or up to 1000
Type of AssemblySMT,Thru-hole
Solder TypeWater Soluble Solder Paste,Leaded and Lead-Free
Components

Passive Down to 0201 size

BGA and VFBGA

Leadless Chip Carriers/CSP

Double-sided SMT Assembly

Fine Pitch to 0.8mils

BGA Repair and Reball

Part Removal and Replacement

Bare Board Size

Smallest:0.25*0.25 inches

Largest:20*20 inches

File Formate

Bill of Materials

Gerber files

Pick-N-Place file

Types of ServiceTurn-key,partial turn-key or consignment
Component packagingCut Tape,Tube,Reels,Loose Parts
Turn TimeSame day service to 15 days service
TestingFlying Probe Test,X-ray Inspection AOI Test
PCB assembly process

Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing





PCB Lead time:



 Single/double side4 layer6 layerAbove 8 layerHDI
Sample lead time(Normal)5-66-77-810-1215-20
Sample lead time(Fastest)48-72 hours566-712
Mass production lead time(First batch)7-910-1213-151620
Production Flow

1. View of MOKO Factory

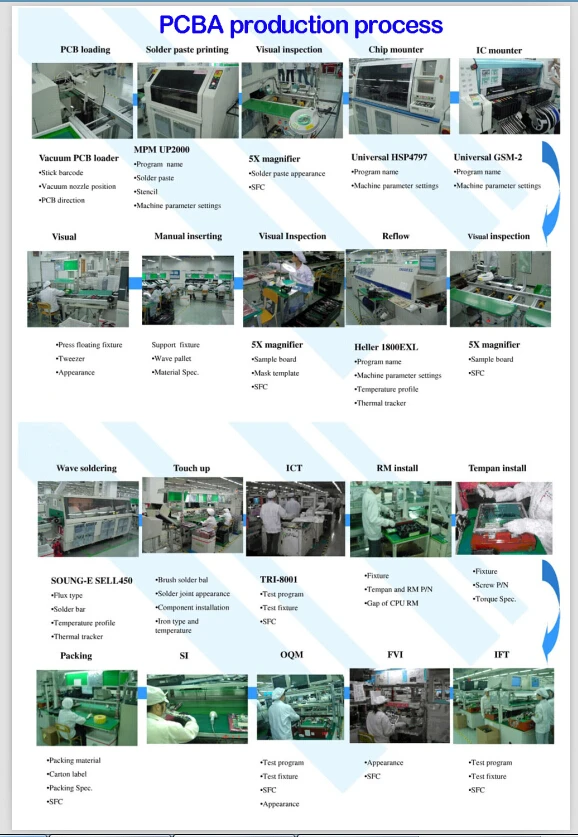

2. PCBA production process





Packaging & Shipping







FAQ



Why us?



Quality

Our UL/Rohs standards insure quality assemblies from start to finish. Whether it's a simple custom product or a complex turnkey production run, Moko will adhere to the highest quality standards.



--------------------------------------------------------------------------------



Capable

Moko offers the latest in assembly capabilities and qualifications insuring that quality is built into every product we produce.



--------------------------------------------------------------------------------



Experience

When it comes to your build you want a partner you can depend on. Our management team has over 10years of combined industry knowledge. Our engineering team has over 7 years experience.



--------------------------------------------------------------------------------



Protecting your interests

Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.



--------------------------------------------------------------------------------



Flexibility

We pride ourselves on our ability to custom tailor programs around our customers' needs. We take time to listen to your unique business needs and then set out to surpass them.

Q:What's files do you use in the bare board fabrication?



A:Gerber RS-274X,274D,Eagle and AutoCAD's DXF,DWG



Q: Will our PCB files be checked?



A: Yes. Your data will be checked by our Engineers Team. If we find any technical issues or have any enquires we will contact you and solve the problems together.



Q:What's files do you need in the PCBA projects?



A:Exclude the pcb file, the PNP(Pick and Place) file and Components Position file also needed.



Q: How can i know the processing about my PCB or PCBA order?



A: Each Customer will have a sale to contact with you. MOKO working hours:AM9:00-PM6:00(Beijing Time) from Monday to Friday. We will reply your email in 2 hours in our working time. And you also can contact with our sales's cell phone if urgent.



Q: Dose our product will be tested before shipment?



A: Yes, we could provide Function Circuit Testing if you provide us the testing methods.



Contact me:

Jacky Wang              Sales engineer



Office: 086-0755-23573370-822                     Cell: 086-13632675640



Skype: jacky19870314(at)outlook.com



 Linkedin:http://www.linkedin.com/profile/view?id=426044499&trk=nav_responsive_tab_profile



Web: www.mokotechnology.com.cn
